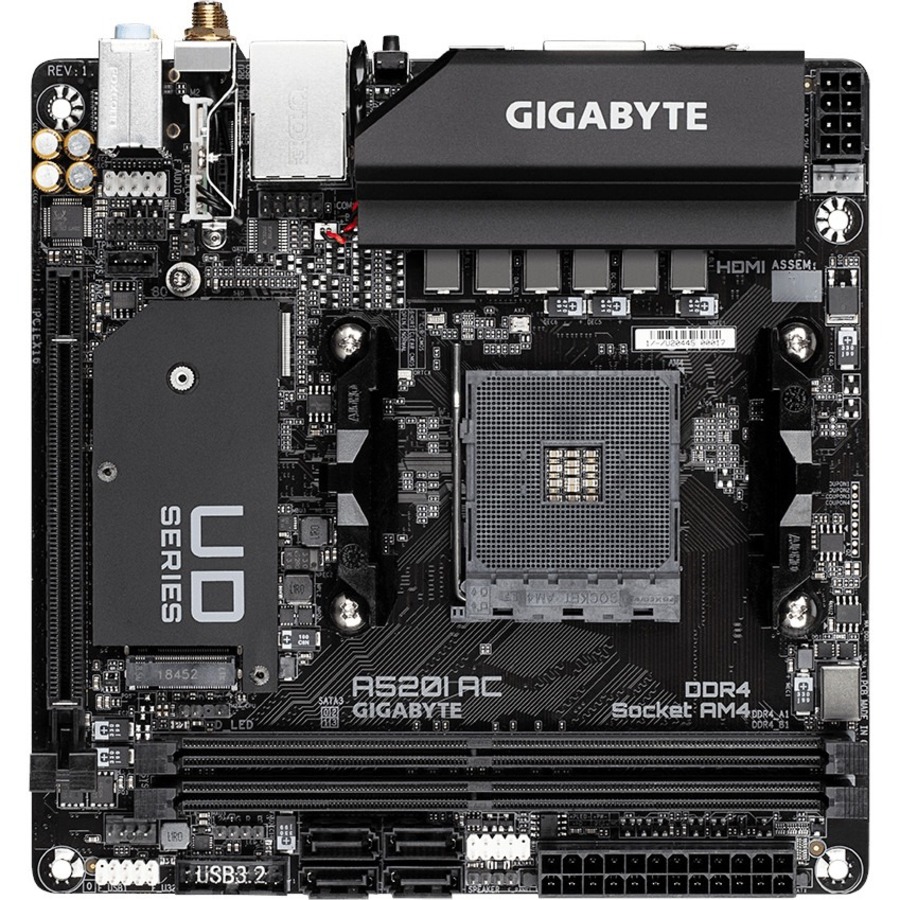

Gigabyte Ultra Durable A520I AC Desktop Motherboard - AMD A520 Chipset - Socket AM4 - Mini ITX - Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9, Ryzen 3 PRO, Ryzen 5 Pro, Ryzen 7 PRO, Ryzen 9 PRO Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - IEEE 802.11a/b/g/n/ac - HDMI - DisplayPort - 4 x SATA Interfaces

https://collateral.varstreet.com/uploads/large_1064915609.jpg

Gigabyte Technology, Inc

Gigabyte Ultra Durable A520I AC Desktop Motherb...show more

-See More Details

Mfr.Part#: A520I AC

Availability: OUT OF STOCK

Call for Price

Quantity:

Product Overview
Technical Specifications

Manufacturer	GIGABYTE Technology, Inc
Manufacturer Part Number	A520I AC
Brand Name	Gigabyte
Product Line	Ultra Durable
Product Model	A520I AC
Product Name	Ultra Durable A520I AC (rev. 1.x) Desktop Motherboard
Marketing Information	AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard Intel 802.11ac WIFI, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs Direct 6 Phases Digital VRM Solution with 55A DrMOS Ultra-Fast NVMe PCIe 3.0 x4 M.2 Onboard Intel® Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable™ Antenna GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management DisplayPort, Dual HDMI for for Multiple Display RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Anti-Sulfur Resistors Design PERFORMANCE Direct 6 Phases Digital VRM Solution with 55A DrMOS A520I AC motherboard uses a Direct 6 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen™ processors. Digital PWM Controller delivers appropriate voltage to the CPU. Direct 6 Phases DrMOS, each power phase connects directly to the CPU. With capability to handle up to 330 Amps current in total. All-solid capacitors to improve Transient response and minimize oscillation. 8pin Solid Pin CPU Power Connector. The onboard 802.11ac WIFI module from Intel® supports the Dual Band and up to 433 Mbps transition speed, 3x faster than 802.11n and also support BLUETOOTH 4.2. The brand new of Ultra Durable™ Antenna supports Dual Band 802.11ax/ac 2.4GHz & 5GHz with 4dBi signal gained. It featured with better signal strength as compared to traditional antenna design and the magnetic base is the best design for signal strength direction and location. Exclusive Realtek 8118 Gaming LAN High Speed Gigabit LAN with Automatic Bandwidth Allocation Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. NVMe PCIe Gen3 x4 M.2 Connector GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential. Dual HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth - twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.
Product Type	Desktop Motherboard

Processor & Chipset
Chipset Manufacturer	AMD
Chipset Model	A520
Total Processor Supported	1
Processor Socket	Socket AM4
Processor Supported	Ryzen 3 Ryzen 5 Ryzen 7 Ryzen 9 Ryzen 3 PRO Ryzen 5 Pro Ryzen 7 PRO Ryzen 9 PRO

Memory
Number of Memory Slots	2
Memory Form Factor	DIMM UDIMM
Maximum Memory Supported	64 GB
Memory Technology	DDR4 SDRAM
Memory Speed Supported	2133 MHz 2400 MHz 2667 MHz 2933 MHz 3200 MHz 3333 MHz 3600 MHz 4000 MHz 4400 MHz 4600 MHz 4866 MHz 5000 MHz 5100 MHz 5200 MHz 5300 MHz

I/O Controller
Controller Type	Serial ATA/600
RAID Supported	Yes
RAID Levels	0 1 10

Video
Onboard Video	CPU Dependent Video

Audio
Audio Channels	7.1

Network & Communication
Bluetooth	Yes
Gigabit Ethernet	Yes
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11a/b/g/n/ac

I/O Expansions
Total Number of Expansion Slots	1
Total Number of PCI Express Slots	1
Number of PCI Express x16 Slots	1

Interfaces/Ports
Total Number of USB Ports	6
Number of USB 2.0 Ports	2
Number of USB 3.2 Gen 1 Ports	4
HDMI	Yes
DisplayPort	Yes
Number of Network (RJ-45) Ports	1

Onboard Interfaces
Number of SATA Interfaces	4
Number of M.2 Interfaces	1
Total Number of Onboard USB Ports	4
Number of Onboard USB 2.0 Ports	2
Number of Onboard USB 3.2 Ports	2

Physical Characteristics
Form Factor	Mini ITX
Width	6.7"
Depth	6.7"

Miscellaneous
Country of Origin	China
